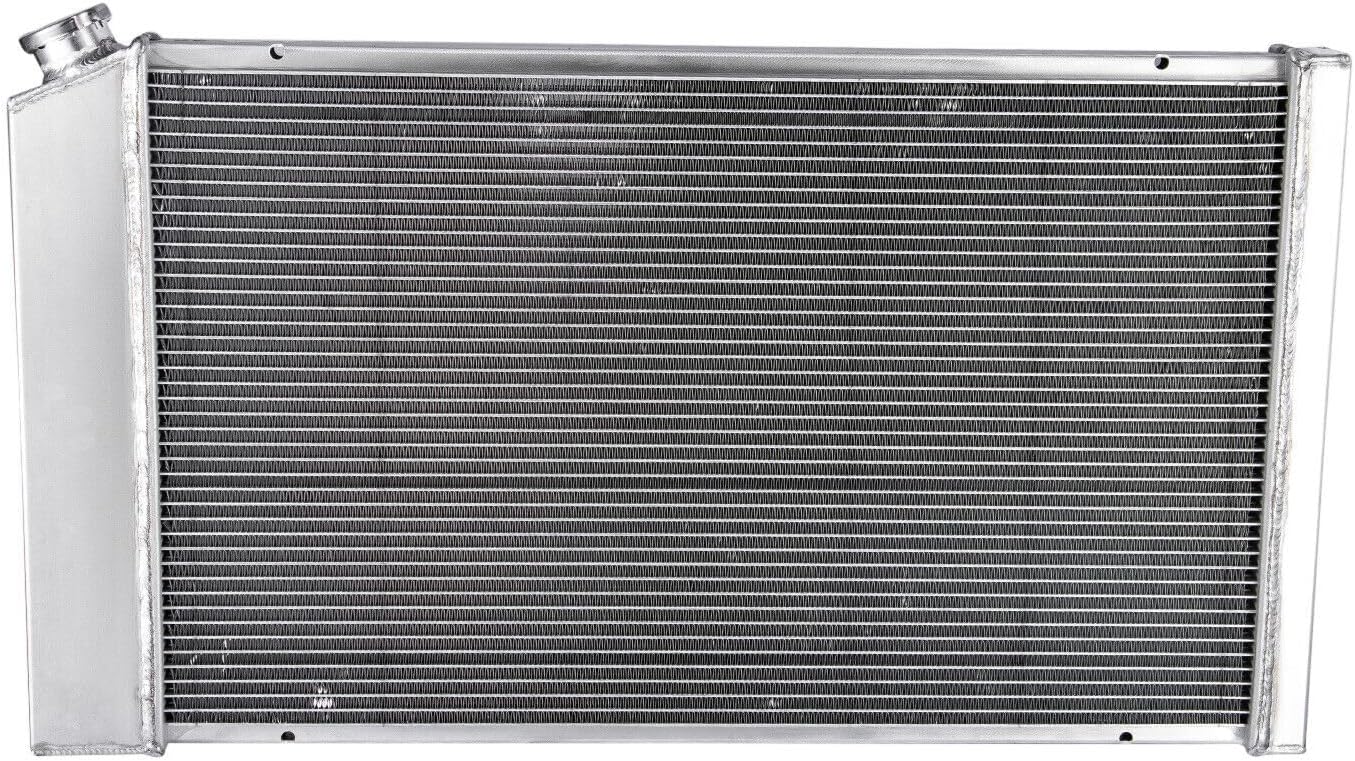

3 Row Radiator Shroud Fan For Chevy Monte Carlo Caprice C10 C20 C30 GMC C/K C15 C1500 V8 1967-1987 Aluminum Radiator Fan Replacement 3 Rows Radiators Fans

Interchange Part Number: GM3010319 3027896 3028147 3029602 3030094 3030095Other Part Number:161 Q161 CU161 RAD161 DPI161Manufacturer Part Number: SBR161DPI Number 161 Partslink Number GM3010319Radiator Details:Material: AluminumCore Size : 17" High x 28 1/4" WideOverall Size : 18 5/8" High x 33" WideInlet Locations & Size: - 1-1/2" Driver SideOutlet Locations & Size： - 1-1/2" Passenger SideTrans Cooler:Included ￠32*215*G1/4(Z)Only For Core Size 17" HeightFan Specification:Diameter : 12'' (Blade to Blade)Voltage: DC 12 VoltsWattage: 80WFan Thickness: 2.5"Number of Blades: 10 S-Type bladesMaximum Fan CFM（Cubic Feet per Minute）: 2150cfmMaximum Fan RPM（Revolution(s) Per Minute）: 2000±10%Package Include:1 X 3-Row Aluminum Radiator1 X Radiator Cap1 X Aluminum Shroud2 X 12" Fans (Includes mounting kits)Description:This aluminum radiator is light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant.Aluminum Shroud+Fan：The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized.

• Fitment: For 1975-1986 Chevy C10 C15 C20 C30 K10 K20 K30 L6 V8; For 1973-1982 Chevy C10 C20 K10 K20 Suburban L6 V8; For 1972 Chevy G10 G20 G30 Van L6 V8; For 1975-1978 GMC C15 C25 C35 K15 K25 K35 L6 V8; For 1973-1974 GMC C15/C1500 C25/C2500 C35/C3500 Pickup L6 V8
• Radiator Size: Core Size : 17" High x 28 1/4" Wide; Overall Size : 18 5/8" High x 33" Wide
• Inlet & Outlet Size: Inlet Locations & Size: - 1-1/2 Driver Side; Outlet Locations & Size： - 1-1/2" Passenger Side
• 2 x 12" Fan: S-Type Blade pull push design, to make air flow more efficient and bring more cooling effect; Powerful 80 watt motor will keep your engine cool
• Features: 100% Leak Tested, 3 Rows, Crossflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation
